- Zero Stop Turret - Zero Stop adjustment turret allows quick and easy yardage setting without counting clicks, precision windage and elevation turret feature crisp audible clicks(Special note: If the elevation turret is loose, consider that the screw on the turret is not tightened after adjusting the turret)
- Glass & Coatings - The lens was made with Optical Quartz(Optical Silica), ion-assisted fully multi-coatings, and up to 92% light transmission, provides excellent color fidelity, brightness, clarity, and detail resolution in most environments
- Main Parameters - Offers parallax adjustment down to 10 yards, 60 MOA of elevation/windage travel, 34 mm Tube and red illuminated etched glass FFP reticle, 96 mm long eye relief, wide field of view 23.1-3.5 feet (@100yds), and 1/10 MIL precision turret adjustment
- Construction & Technology - Constructed with 6061 T6 aircraft-grade aluminum alloy for a stable, durable, and lightweight structure. Matte black anodized finish enhances appearance and wear resistance, nitrogen filling prevents fogging, the mature design and assembly processes ensure excellent shock resistance and waterproof performance
- Our TD series offers exceptional value. Whether you need a reliable shooting partner or want to upgrade your optics, it will be an excellent choice

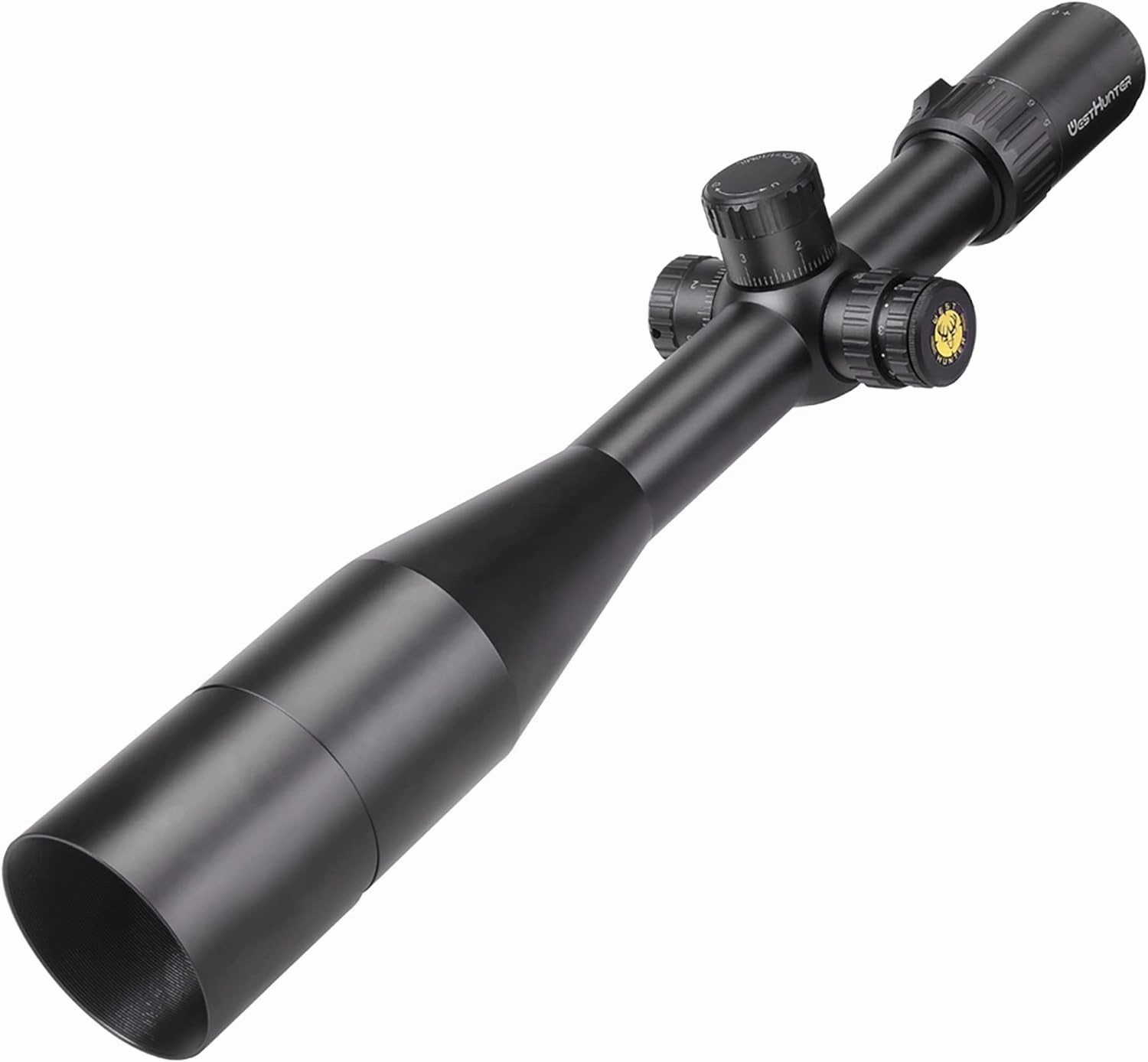

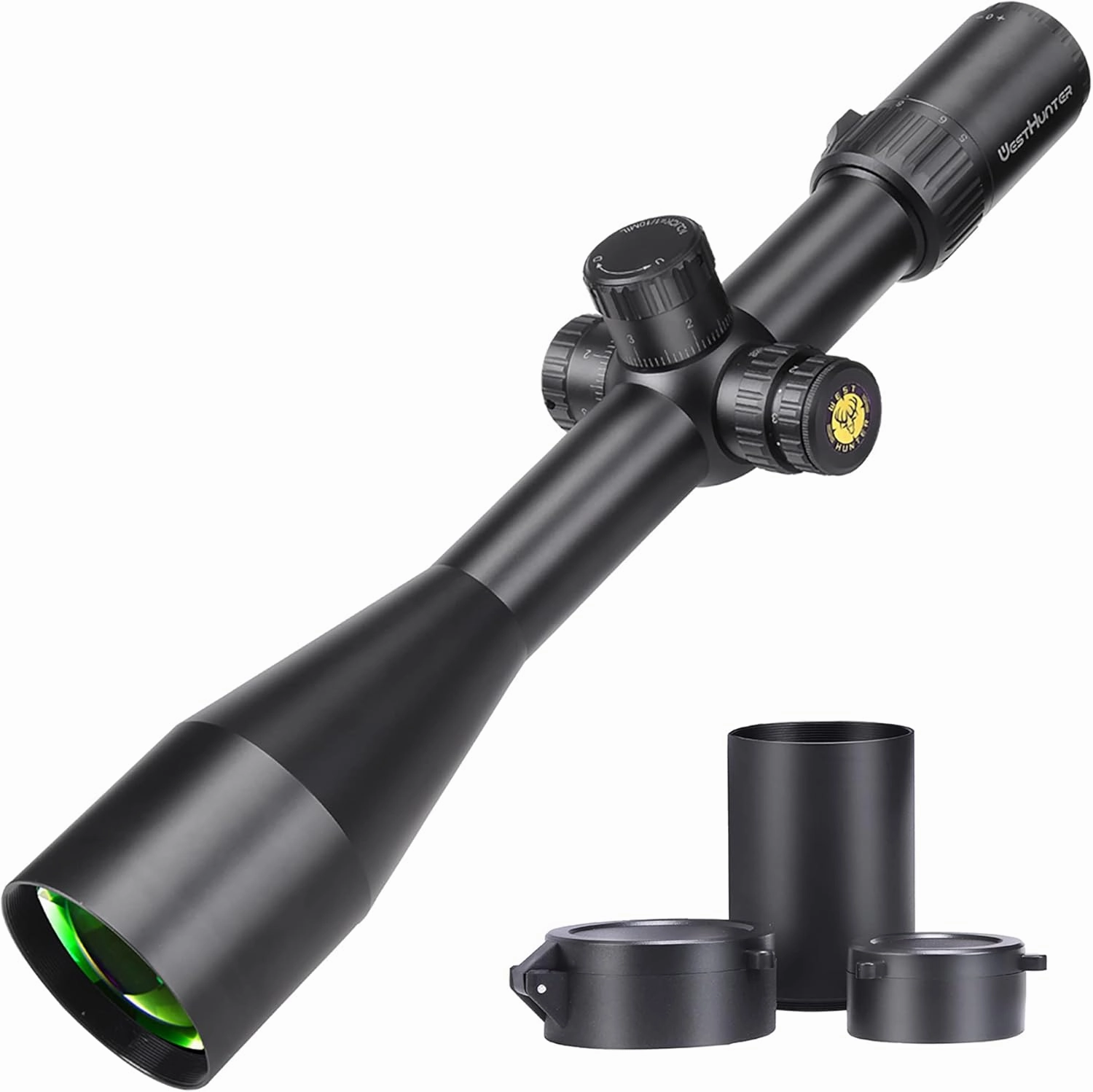

The TD series Riflescope is the latest high-end product launched by Westhunter in 2022. It is a high-performance optics, suitable for large caliber(.308 to .50), used for long-range precision shooting, hunting and competition(TD 5-30x56 SFIR FFP has the function of "Zero Stop")
Specifications:
Brand: WestHunter
Model: TD 5-30x56 SFIR FFP
Zero Stop: Yes
Magnification: 5x-30x
Objective Lens Diameter: 56 mm / 2.2 in
Objective Diameter: 64 mm / 2.5 in
Eyepiece Lens Diameter: 35 mm / 1.38 in
Eyepiece Diameter: 44 mm / 1.73 in
Illumination: Red(CR2032 battery is not included in the package)
Tube Diameter: 34 mm / 1.34 in
Diopter Adjustment: - 2.0 / 2.0
Exit Pupil: 6-1.6 mm
Standard Click Value for E/W: 1/10 MIL
Total Travel Elevation (@ 100 yds): 60 MOA
Total Travel Windage (@ 100 yds): 60 MOA
Parallax Adjustment: 10yds to Infinity
Eye Relief: 96-95 mm (3.78- 3.74 in)
Field of View: 23.1-3.5@100yds(ft)

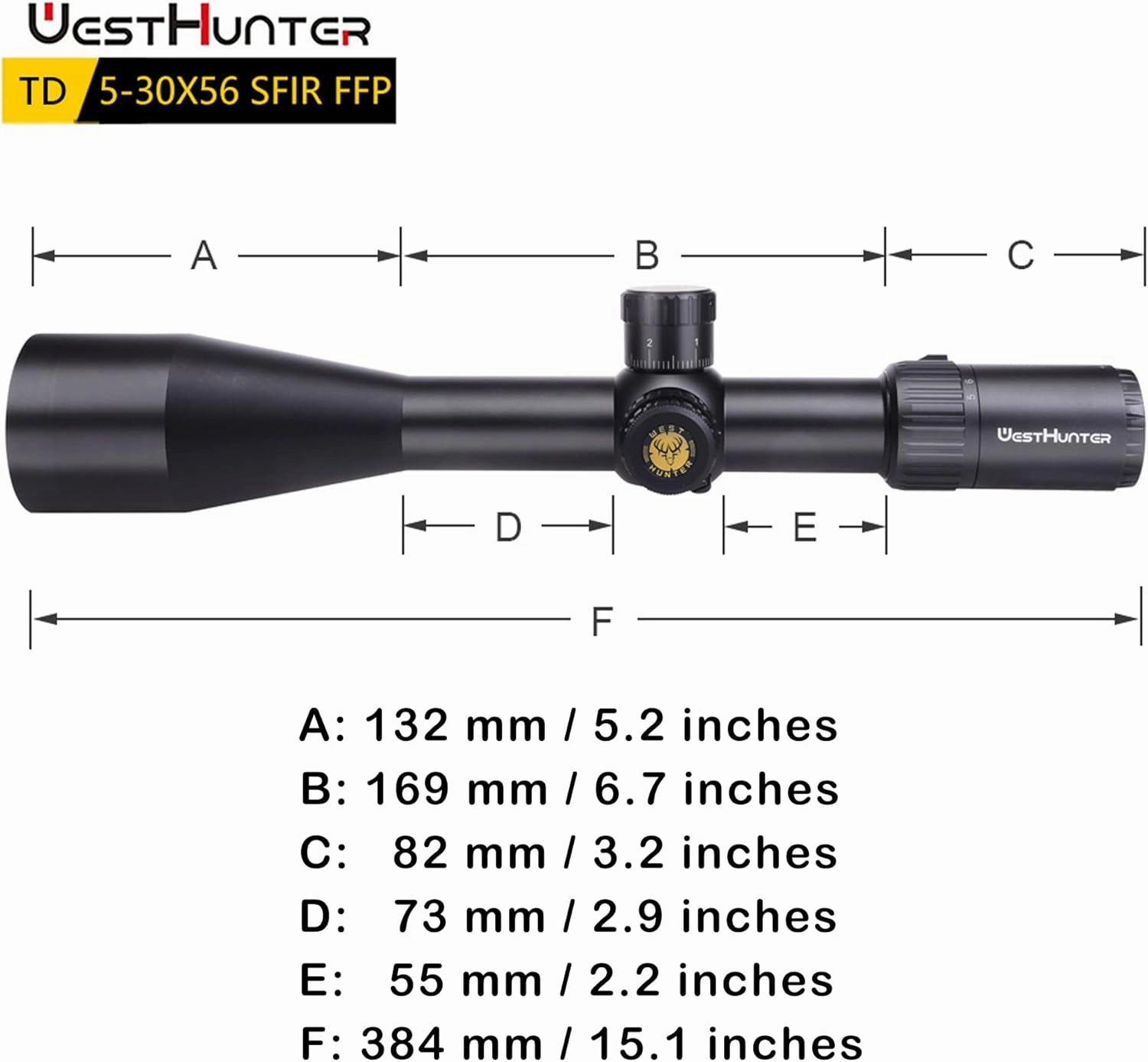

Length: 384 mm / 15.12 in
Net Weight of Optics: 913 g / 32.21 oz
Surface Treatment: Anodizing
Fast Focus Eyepiece: Yes
Sealing Gas Used: Nitrogen
Range of Function temperature (Unit can still be operated): -25°C/ 55°C
Storage temperature: -40°C to 85°C
Range of Dioptric compensation /- dpt: 2
Permissible backlash Dioptric Compensation: <0.25dpt
Straightening of the Reticle: ±2°
Coating: Fully Multi-Coated(FMC)
